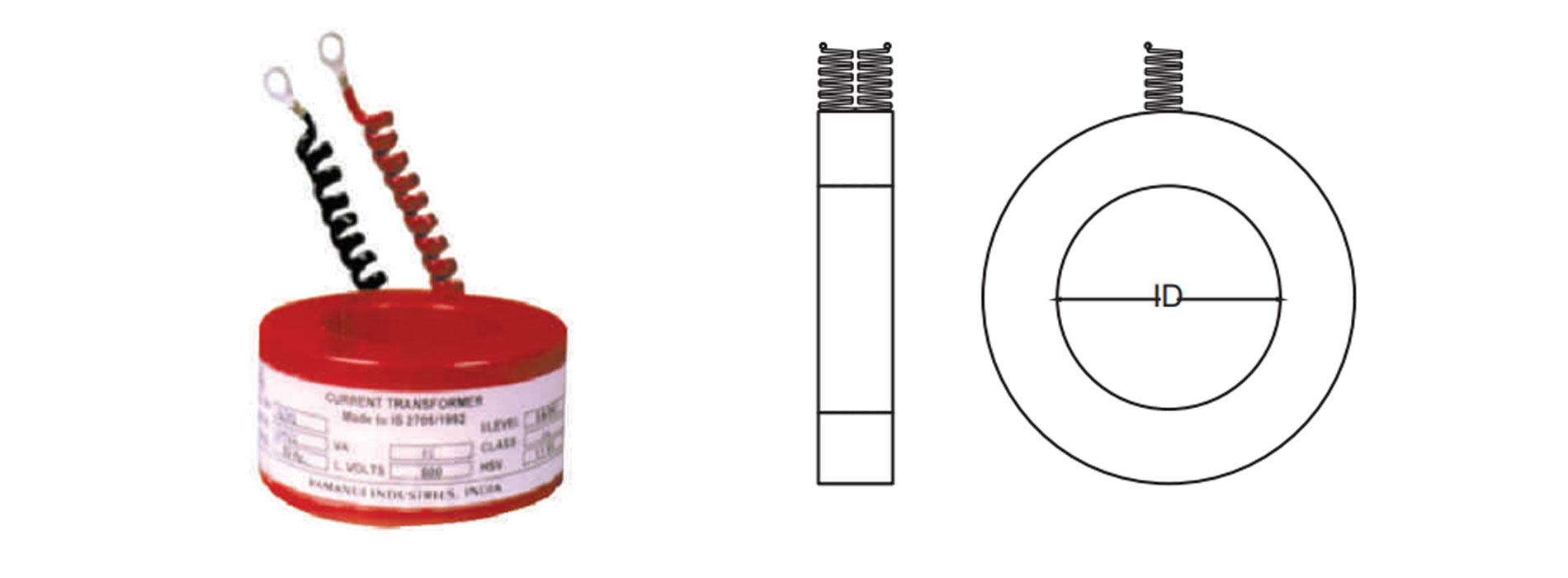

S.No	Ratio	VA Burden	Class	ID	OD	HEIGHT
1	30/5 to 75/5	5	5	30	75	45
2	100/5	5	1	30	75	45
3	150/5	5	1	30	75	45
4	200/5	5	1	40	93	45
5	250/5	5	1	40	93	45
6	300/5	5	1	40	93	45
7	400/5	5	1	55	110	40
8	500/5	5	1	55	110	40
9	600/5	5	1	55	110	40
10	800/5	5	1	80	125	40
11	1000/5	5	1	80	125	40
12	1200/5	5	1	80	125	40
13	1500/5	5	1	80	125	40

All Dimensions are in MM + 2MM.

Customer specific ratios can be produced from 1 AMP onwards.

Select ratios also available in: Class 0.2S, 0.5S, 0.5, 1, 3, 5 & 10, Burden 1, 3, 5, 10 & 15 VA

PVC Tape Wound Protection class CTs also available.

Material : Epoxy Resin, PVC, ABS.

Insert/Terminals : Brass, M.S. (Zinc Passivated).
