S.No.	Ratio	VA Burden	Class	ID	OD	H
1	40/5	5	0.5	-	86	83
2	50/5	5	0.5	-	86	83
3	60/5	5	0.5	-	86	83
4	75/5	5	0.5	-	86	83
5	100/5	5	0.5	-	86	83

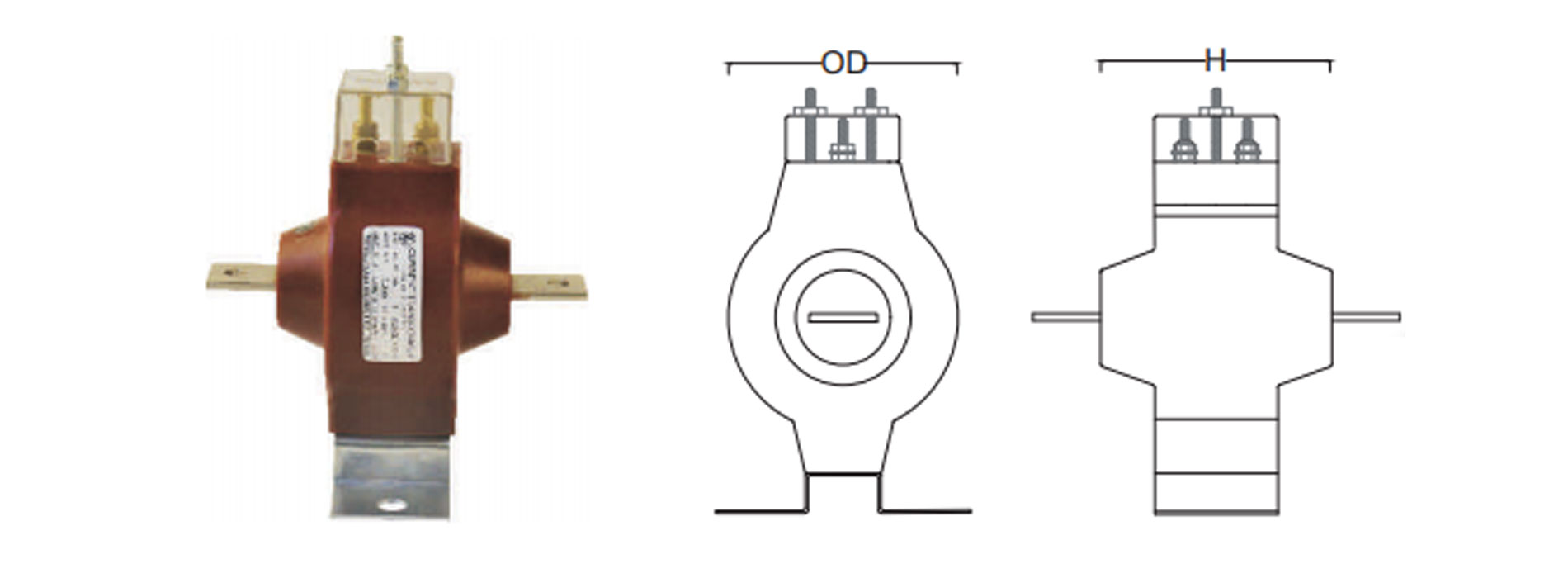

All Dimensions are in MM + 2MM.

Customer specific ratios can be produced from 1 AMP onwards.

Select ratios also available in: Class 0.2S, 0.5S, 0.5, 1, 3, 5 & 10, Burden 1, 3, 5, 10 & 15 VA

PVC Tape Wound Protection class CTs also available.

Material : Epoxy Resin, PVC, ABS.

Insert/Terminals : Brass, M.S. (Zinc Passivated).
