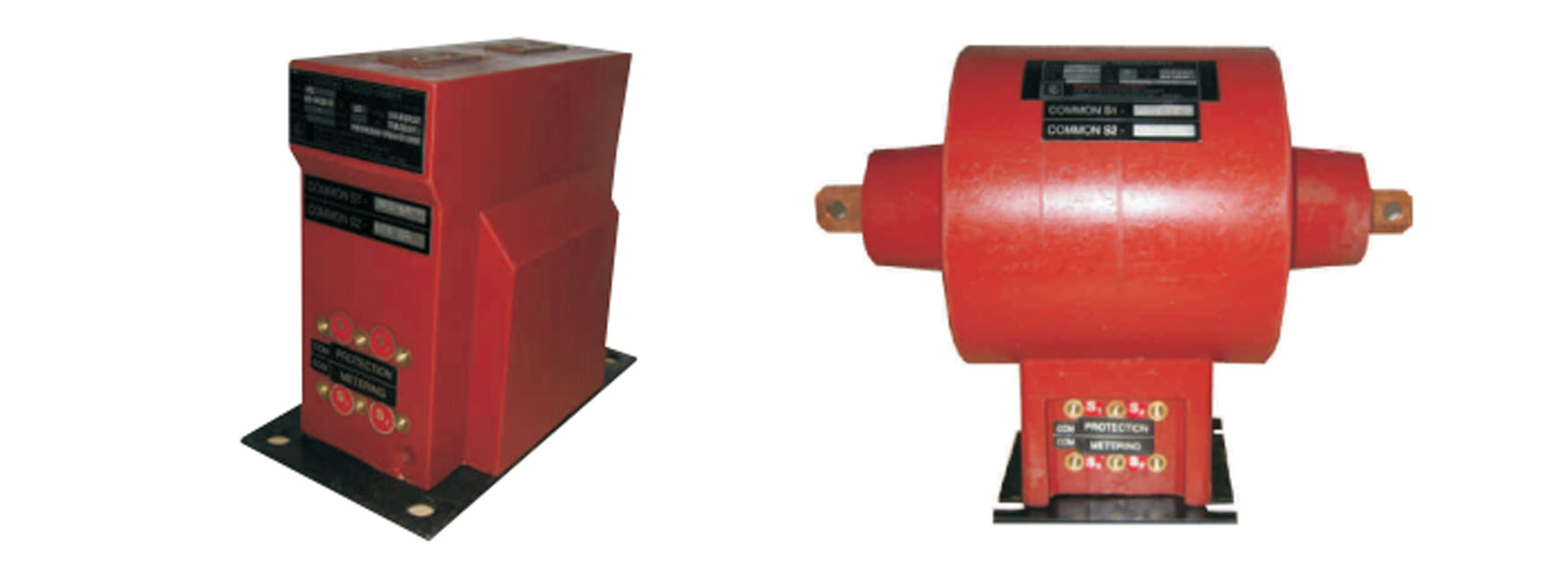

EPOXY CAST 11 Kv PROTECTION CTs
S.No |
Ratio |
VA Burden |
Class |
Plate Size |
Height |
L |
B |
|
1 |
50/5 |
10 |
0.5 |
280 |
150 |
230 |
2 |
60/5 |
10 |
0.5 |
280 |
150 |
230 |
3 |
125/5 |
10 |
0.5 |
280 |
150 |
230 |
All Dimensions are in MM + 2MM.
Customer specific ratios can be produced from 1 AMP onwards.
Select ratios also available in: Class 0.2S, 0.5S, 0.5, 1, 3, 5 & 10, Burden 1, 3, 5, 10 & 15 VA
PVC Tape Wound Protection class CTs also available.
Material : Epoxy Resin, PVC, ABS.
Insert/Terminals : Brass, M.S. (Zinc Passivated).
