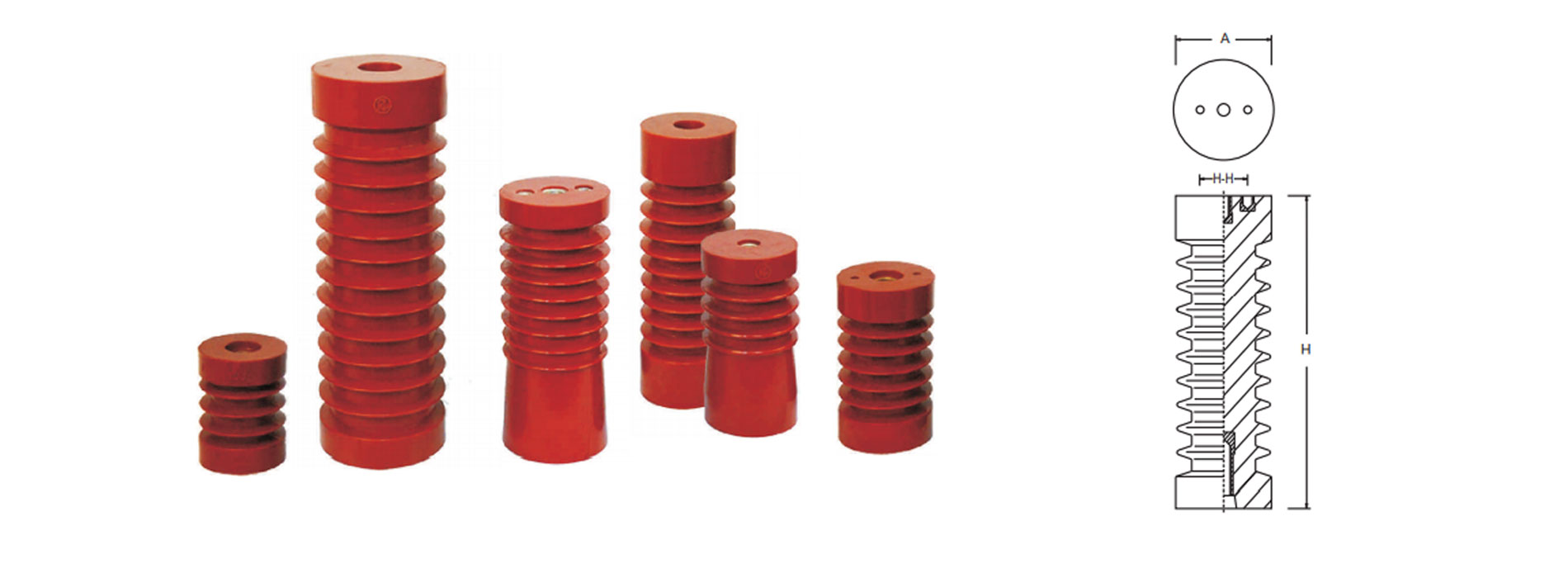

HT EPOXY INSULATORS

HT SUPPORT INSULATORS

S. No. Cat. No. Voltage Rating Dia Height Hole to Hole Ribs (Nos) Creepage Insert size Std. Packing
1 HT 6175     Brass 3.5 Kv 61 75 36 2 100 M12 X 18 M10 X 18 M6 X 10 10
2 HT 6175     MS 3.5 Kv 61 75 36 2 100 M12 X 22 M10 X 20 M6 X 15 10
3 HT 6190     Brass 6.8 Kv 61 90 36 3 132 M12 X 18 M10 X 18 M6 X 10 10
4 HT 6190     MS 6.8 Kv 61 90 36 3 132 M12 X 22 M10 X 20 M6 X 15 10
5 HT 61130   Brass 12Kv 61 130 36 5 175 M16 X 37 M10 X 18 M6 X 12 6
6 HT 61130   MS 12Kv 61 130 36 5 175 M16 X 37 M10 X 22  M6 X 15 6
7 HT 68130   MS 12 Kv 68 130 38 5 210 M16 X 37 M10 X 22  - 6
8 HT 75130   Brass 12 Kv 75 130 46 5 175 M20 X 40 M16 X 30 M10 X 16 6
9 HT 75130   MS 12 Kv 75 130 46 5 175 M20 X 40 M16 X 37 M10 X 20 6
10 HT 75150   Brass 12 Kv 75 150 - 5 190 M12 X 22 M16 X 37 - 6
11 HT 75150   MS 12 Kv 75 150 - 5 190 M12 X 22 M16 X 37 - 6
12 HT 70210   MS 22 Kv 70 210 36 9 310 M16 X 37 M10 X 30 M6 X 15 1
13 HT 70220   MS 22 Kv 70 220 36 9 310 M16 X 37 M10 X 30 M6 X 15 1
14 HT 85210   MS 22 Kv 85 210 46 8 300 M20 X 40 M16 X 30 M10 X 20 1
15 HT 80300   MS 35 Kv 80 300 36 12 450 M16 X 60 M10 X 30 M6 X 15 1
16 HT 100300 MS 35 Kv 100 300 47 11 410 M24 X 60 M16 X 60 M10 X 25 1
*Also available in Cycloaliphatic Epoxy Resin suitable for outdoor use (Prices for Cycloaliphatic Epoxy on request)

* All Dimensions are in MM.
* Material : Epoxy Resin
* Insert : Brass, M.S. (Zinc Passivated), Alluminium.
* All Products are CE certified.
