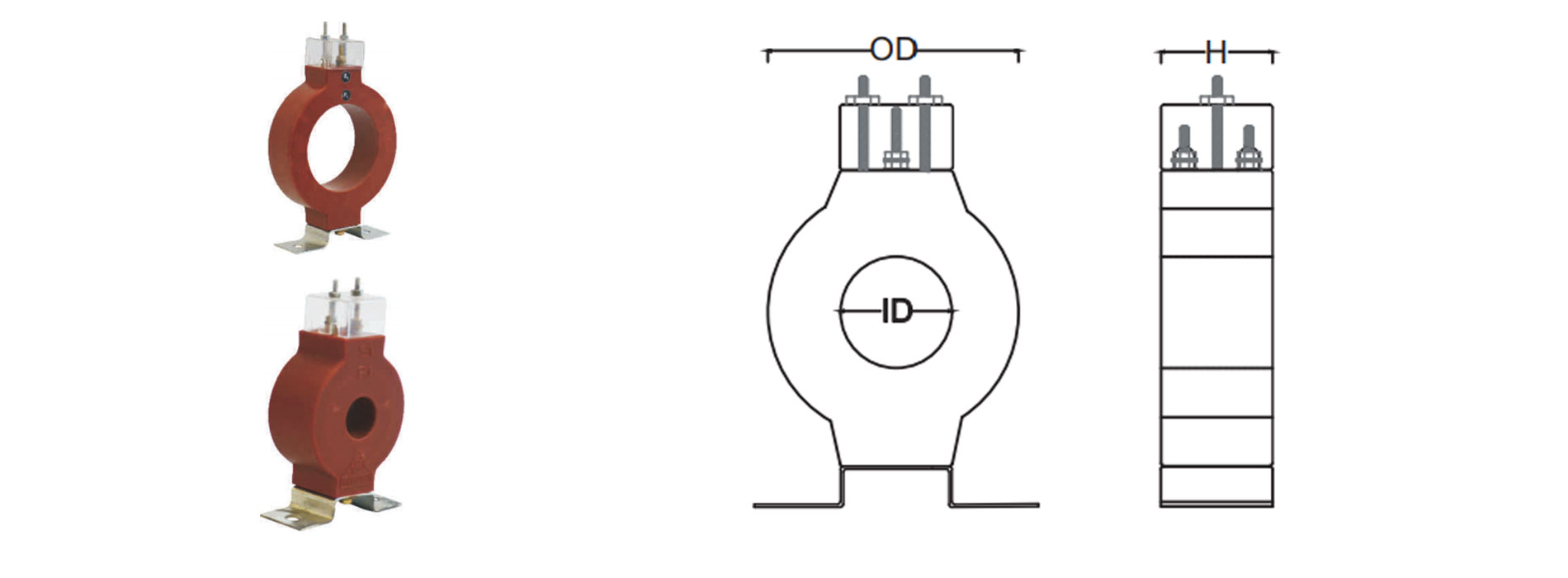

EPOXY CAST RING TYPE CTs

S.No. Ratio VA Burden Class ID OD HEIGHT
1 30/5 to 75/5 5 3 30 90 45
2 100/5 5 0.5 30 80 75
3 150/5 5 0.5 30 90 45
4 200/5 5 0.5 40 90 40
5 250/5 5 0.5 40 90 40
6 300/5 5 0.5 55 102 40
7 400/5 5 0.5 60 100 35
8 500/5 5 0.5 55 110 40
9 600/5 5 0.5 55 110 40
10 800/5 5 0.5 80 130 40
11 1000/5 5 0.5 80 130 40
12 1200/5 5 0.5 80 130 40
13 1600/5 15 0.5 80 130 40
14 1800/5 15 0.5 80 130 40
15 1500/5 5 0.5 80 130 40
16 2000/5 5 0.5 80 130 40
17 2500/5 5 0.5 100 180 40
18 3000/5 5 0.5 110 180 40
19 4000/5 5 0.5 110 180 40
All Dimensions are in MM + 2MM.
Customer specific ratios can be produced from 1 AMP onwards.
Select ratios also available in: Class 0.2S, 0.5S, 0.5, 1, 3, 5 & 10, Burden 1, 3, 5, 10 & 15 VA
PVC Tape Wound Protection class CTs also available.
Material : Epoxy Resin, PVC, ABS.
Insert/Terminals : Brass, M.S. (Zinc Passivated).
