NEUTRAL LINKS*

NEUTRAL LINKS*

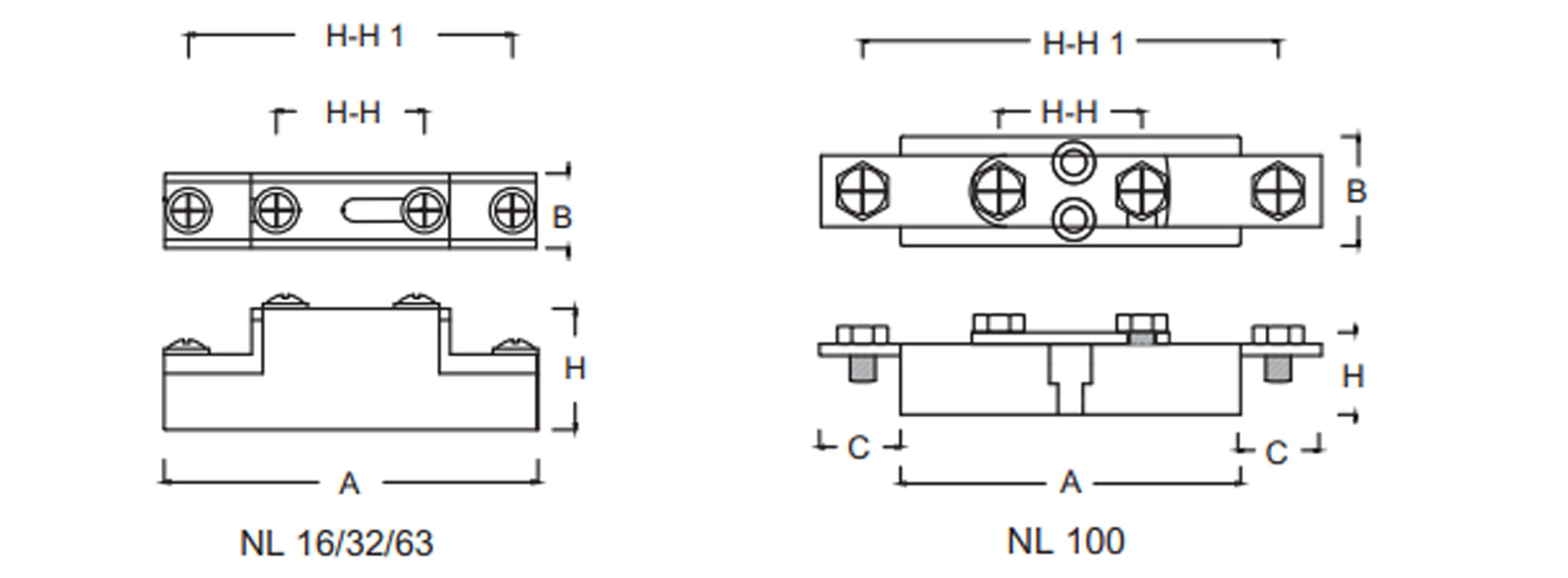

S.No Cat No. Current Rating Dimensions Std.Pack.
A B H H-H H-H1
1 NL 16 16 Amps 61.5 8.5 16.68 22.5 55 60
2 NL 32 32 Amps 61.5 8.5 16.68 22.5 55 60
3 NL 63 63 Amps 73.6 13.5 23.5 30 55 20
4 NL 100 100 Amps 75.5 21.2 15.3 28.5 92 10
* All Dimensions are in MM.
* All Products are CE certified.
* Engineering grade glass filled thermoplastic, Bars : Nickle plated brass with MS Zinc passivated screws,
* Contacts : Brass with tinned finish.
