HV TRANSFORMER BUSHINGS WITH COPPER ROD

<

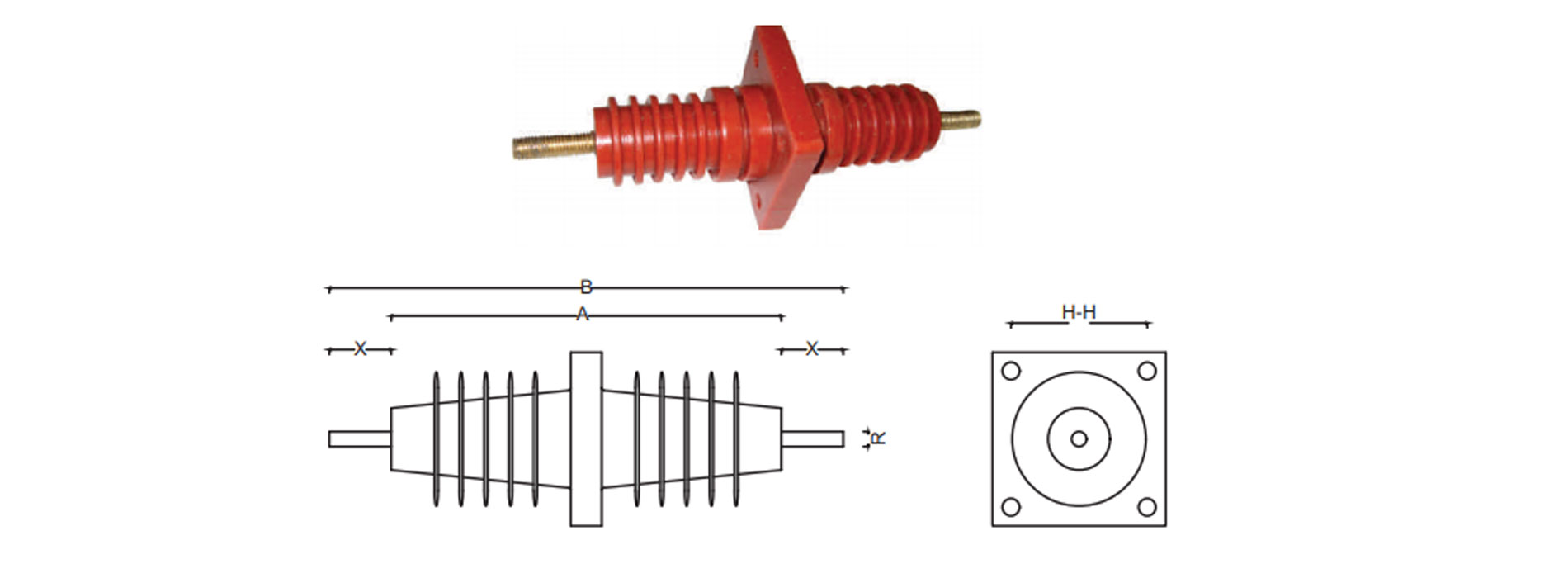

S.No Cat No. Voltage Rating Dimention Creepage(Each Side)
A Rod B H-H X
1 HV Bushing 320A 11 Kv 315 415 12 110 50 360
2HV Bushing 400A 11 Kv 315 415 16 110 50 360
3 HV Bushing 850A 11 Kv 315 435 24 110 60 360
4 HV Bushing 1250A 11 Kv 315 445 30 110 65 360
Any change in prices of Brass and Copper may effect the prices. Hence it is advisable to ask for a fresh
qoutation at the time of order.
All Dimensions are in MM.
Material : Epoxy, Brass & Copper
All Products are CE certified.
