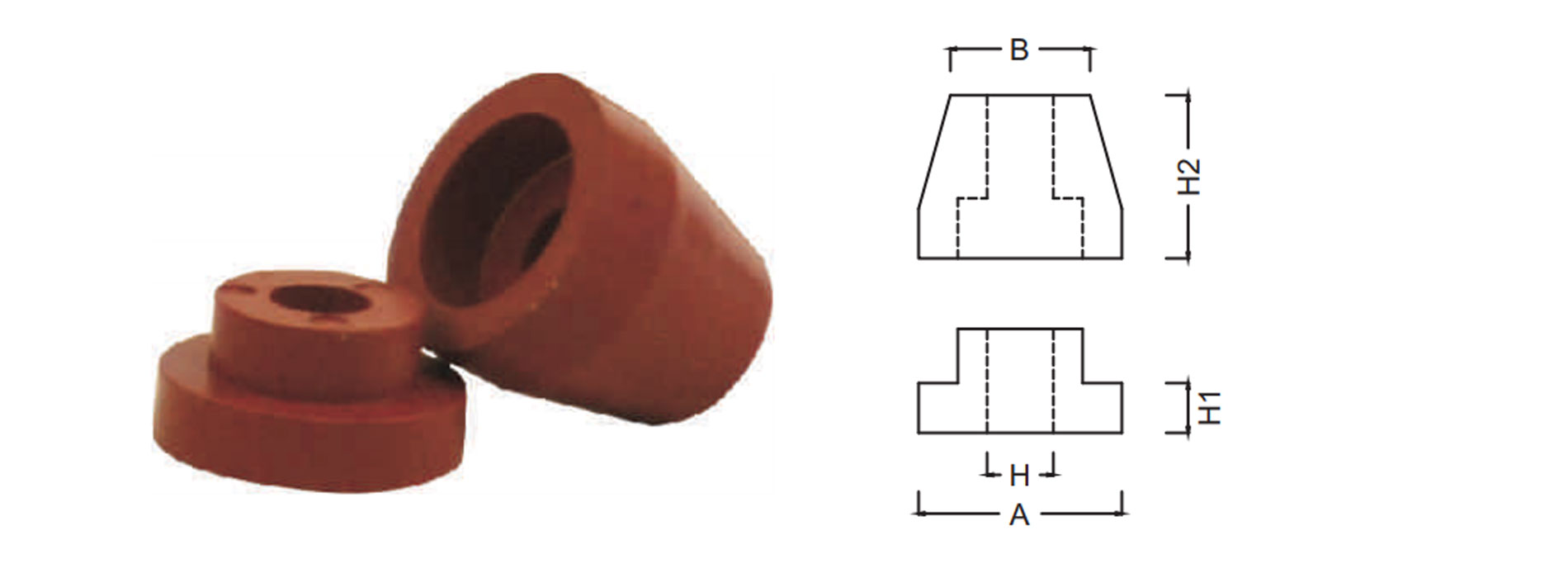

MALE FEMALE BUSHING

S.No Cat No. Voltage Rating Dimensions Sheet Cut
A B H1 + H2 Hole
1 BCT 323810 1.1 32 22 8+30 11 21.5
2 BCT 374012 1.1 37 25 10+30 13 23
Any change in prices of Brass and Copper may effect the prices. Hence it is advisable to ask for a fresh qoutation at the time of order
All Dimensions are in MM.
Material : DMC (Dough Moulding Compound) Hologen free .Epoxy Resin, Brass & Copper
All Products are CE certified.
