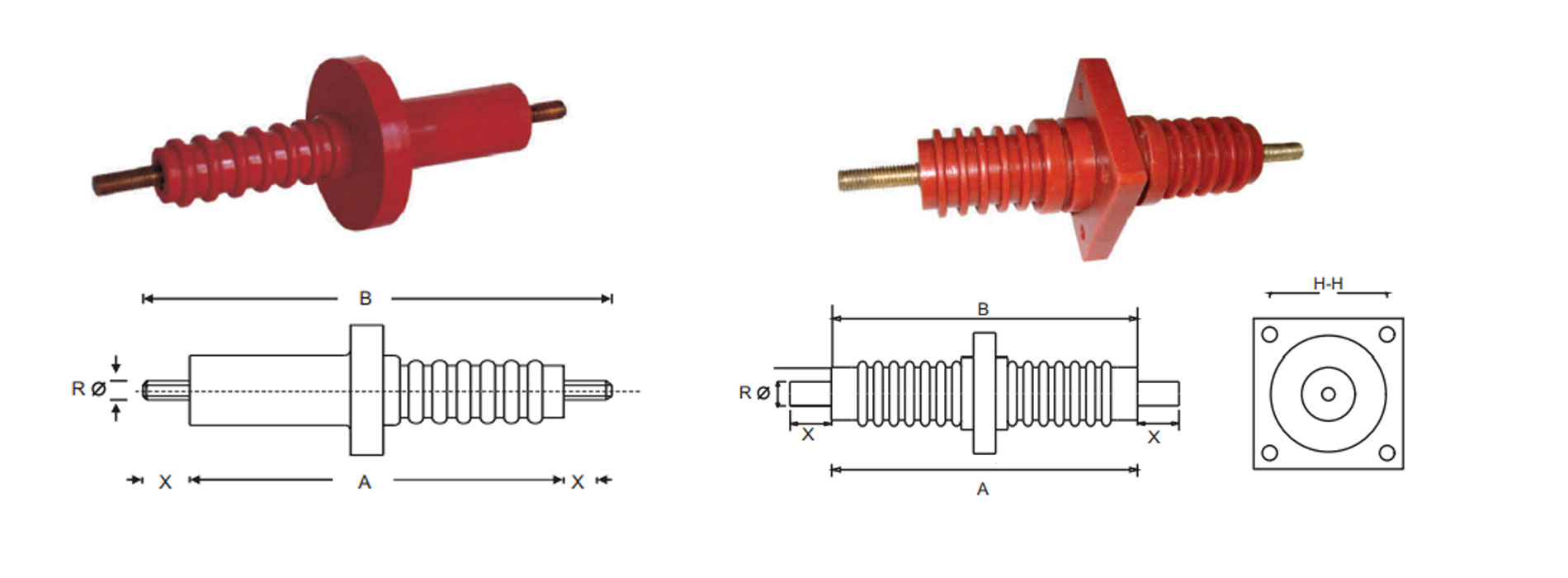

HV TRANSFORMER BUSHINGS WITH BRASS ROD
| S.No |
Cat No. |
Voltage Rating |
Dimensions |
|
|
A |
Rod |
B |
H-H |
X |
| 1 |
HV 2006 |
11 Kv |
155 |
200 |
M6 |
|
210 |
| 2 |
HV 2008 |
11 Kv |
155 |
200 |
M8 |
|
210 |
| 3 |
HV 27012 |
11 Kv |
185 |
200 |
M12 |
55 |
295 |
| 4 |
HV 27016 |
11 Kv |
185 |
270 |
M16 |
55 |
295 |
Any change in prices of Brass and Copper may effect the prices. Hence it is advisable to ask for a fresh
qoutation at the time of order.
All Dimensions are in MM.
Material : Epoxy, Brass & Copper
All Products are CE certified.
