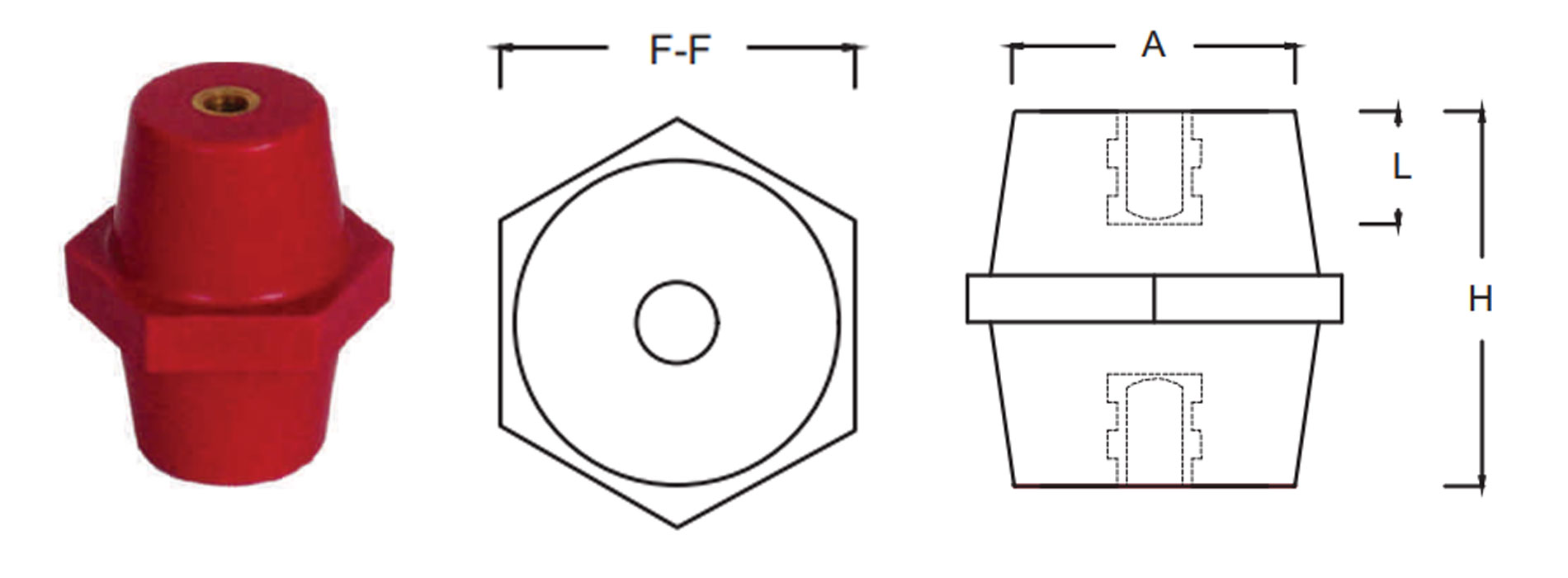

S.No	Cat No.	Dimention			Insert Size		Std.Pack.
		A	F-F	H	Thread	L
1	MH 415*	13	14	15	M4	6	100
2	MH 620	15	16	20	M6	8	100
3	H 625	21	25	25	M6	9	100
4	H 630	25	33	30	M6	9	50
5	H 830	25	33	30	M8	10	100
6	H 635	26	35	35	M6	12	50
7	H 835	26	35	35	M8	12	50
8	H 1035	26	35	35	M10	13	50
9	H 840	30	40	40	M8	12	50
10	H 1040	30	40	40	M10	13	50
11	H 845	30	40	45	M8	15	50
12	H 1045	30	40	45	M10	15	50
13	H 850	35	45	50	M8	15	25
14	H 1050	35	45	50	M10	15	25
15	H 1250	35	45	50	M12	16	25
16	H 860	38	50	60	M8	18	20
17	H 1060	38	50	60	M10	18	20
18	H 1260	38	50	60	M12	18	20
19	H 875	38	55	75	M8	21	15
20	H 1075	38	55	75	M10	21	15
21	H 1275	38	55	75	M12	21	15

* Available in Polyamide

* Introducing Eco Series with MS Inserts

* All Dimensions are in MM.

* Material : DMC (Dough Moulding Compound) Hologen free.

* Insert : Brass, M.S. (Zinc Passivated), Alluminium.

* All Products are CE certified
