FULL HEXAGONAL TYPE INSULATORS

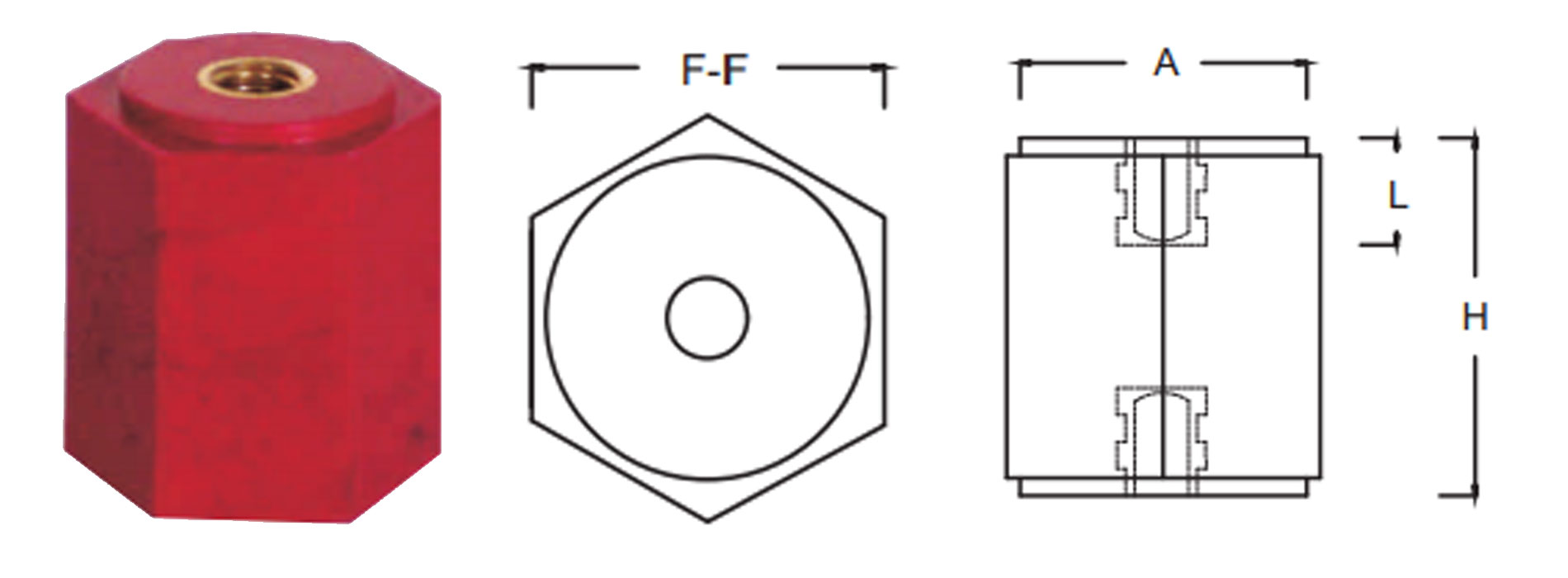

S.No Cat No. Dimention Insert Size Std.Pack.
A F-F H Thread L
1 FH 62525 21 25 25 M6 9 100
2 FH 82525 21 25 25 M8 9 100
3 FH 63025 21 25 30 M6 9 100
4 FH 83025 21 25 30 M8 10 100
5 FH 84035 32 35 40 M8 12 50
6 FH 85045 42 45 50 M8 15 30
7 CC 105060 40 50 60 M10 15 30
8 FH 105045 42 45 50 M10 15 30
9 FH 125045 42 45 50 M12 16 30
All Dimensions are in MM.
Material : DMC (Dough Moulding Compound) Hologen free.
Insert : Brass, M.S. (Zinc Passivated), Alluminium.
All Products are CE certified.
For technical details, torque values, test reports & application guide please refer to our website www.ramanujindustries.com
