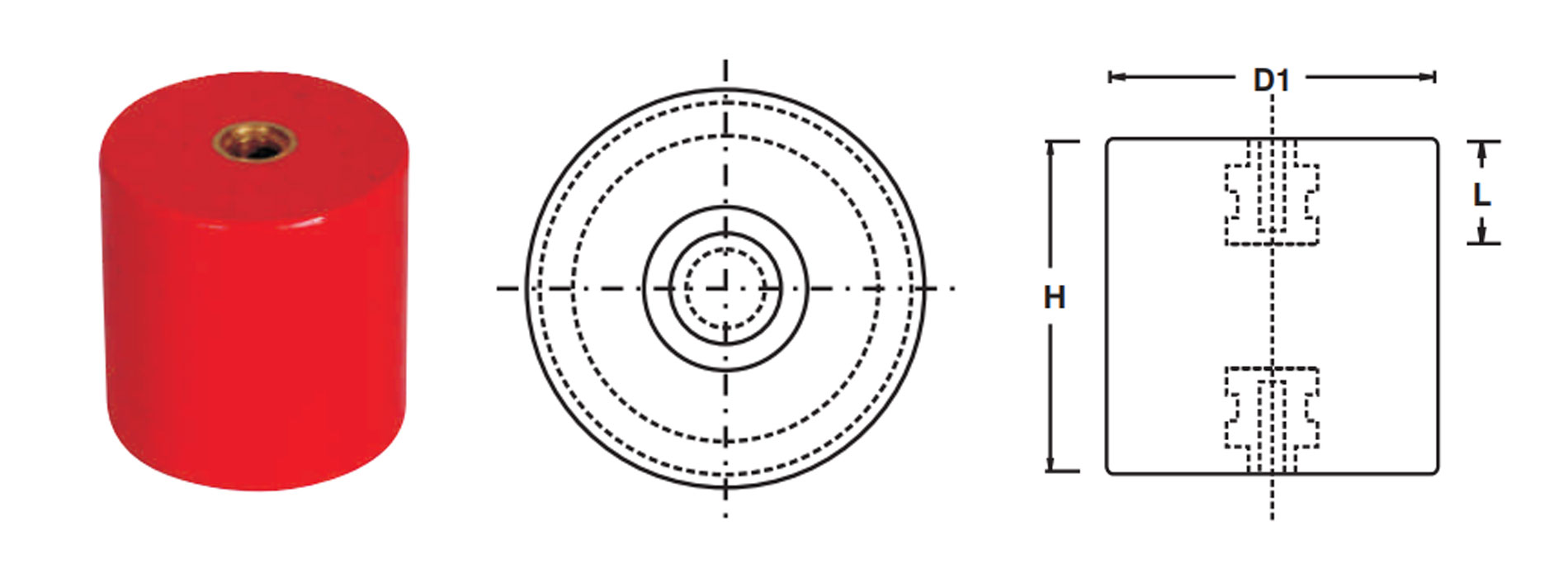

CYLINDRICAL SUPPORTS

S.No Cat No. Dimensions Insert Size Std.Pack.
D1 D2 H Thread L
1 CL 625 20 25 25 M6 10 150
2 CL 630 30 30 30 M6 10 100
3 CL 830 30 30 30 M8 10 100
4 CL 63040 30 30 40 M6 12 100
5 CL 83040 30 30 40 M8 12 100
6 CL 840 40 40 40 M8 12 50
7 CL 1040 40 40 40 M10 13 50
8 CL 84050 40 40 50 M8 15 50
9 CL 104050 40 40 50 M10 15 50
10 CL 1050 50 50 50 M10 15 25
11 CL 1250 50 50 50 M12 16 25
12 CL 125060 50 50 60 M12 18 25
13 CL 1260 60 60 60 M12 18 20
14 CL 1660 60 60 60 M16 21 20
15 CL 126080 60 60 80 M16 21 15
16 CL 126080 60 60 80 M16 25 15
All Dimensions are in MM.
Material : DMC (Dough Moulding Compound) Hologen free.
Insert : Brass, M.S. (Zinc Passivated), Alluminium.
All Products are CE certified.
