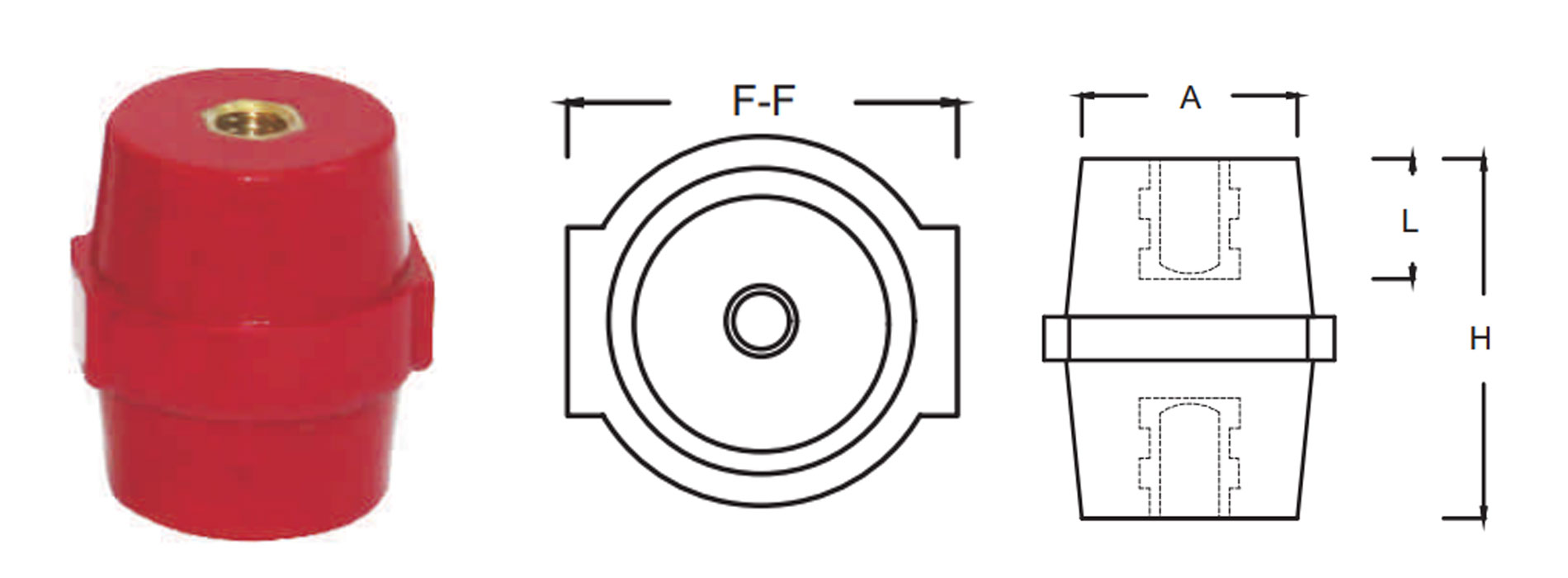

DRUM SUPPORT SERIES

S.No Cat No. Dimensions Insert Size Std.Pack.
A F-F H Thread L
1 D 625 20 25 25 M6 9 100
2 D 630 25 29 30 M6 9 100
3 D 830 25 29 30 M8 10 100
4 D 835 28 33 35 M8 12 50
5 D 840 38 41 40 M8 12 50
6 D 845 33 41 45 M8 15 50
7 D 850 32 45 50 M8 15 25
8 D 1050 32 45 50 M10 15 25
9 D 1060 36 51 60 M10 18 20
10 D 1075 37 51 75 M10 21 15
11 D 1275 37 51 75 M12 21 15
* Introducing Eco Series with MS Inserts
*All Dimensions are in MM.
* Material : DMC (Dough Moulding Compound) Hologen free.
* Insert : Brass, M.S. (Zinc Passivated), Alluminium.
* All Products are CE certified.
