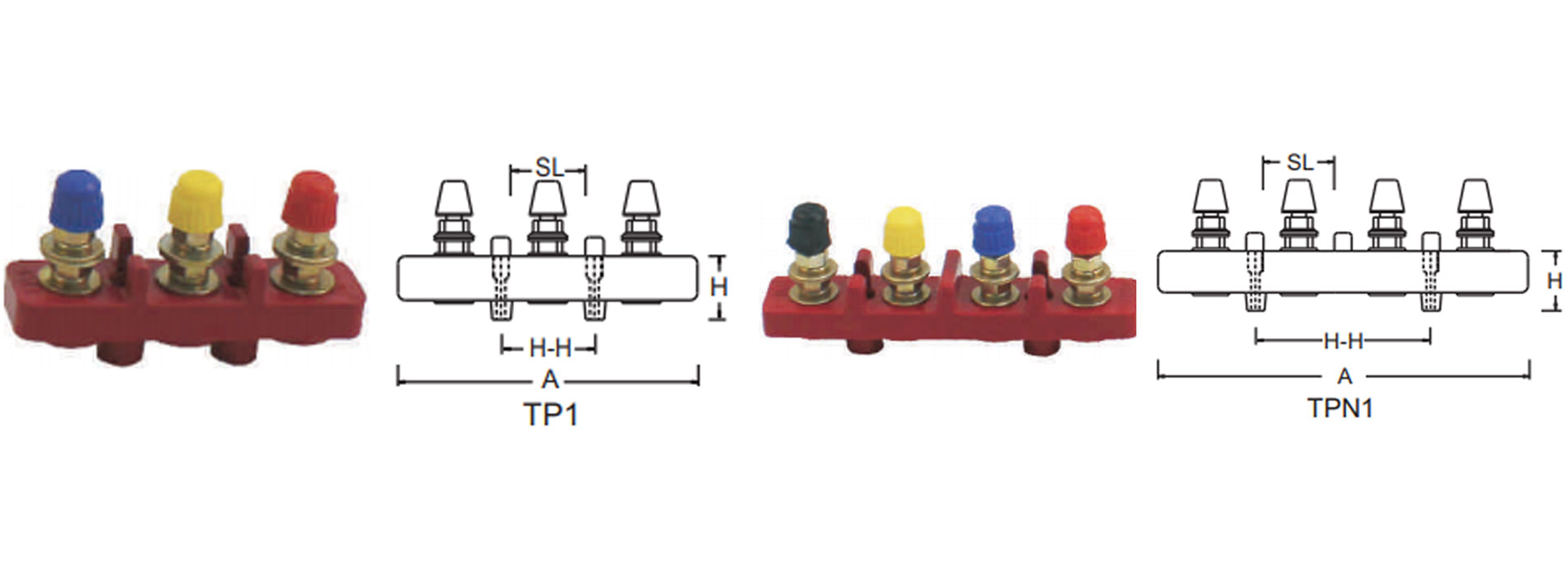

THREE PHASE CONNECTORS WITH MOULDED BOLTS plus COVER
| S. No. |
Cat. No. |
Type |
Bolt size |
|
Dimensions |
| A |
B |
H |
H-H |
SL |
Std. Packing |
| 1 |
TP 1 |
TP |
1/4" X 30mm |
90 |
24 |
32 |
30 |
25 |
25 |
| 2 |
TPN 1 |
TPN |
1/4" X 30mm |
120 |
24 |
29.5 |
58 |
25 |
20 |
* Also available in high tensile bolts
* All Dimensions are in MM.
* Material : DMC (Dough Moulding Compound) Hologen free, SMC (Sheet Moulding Compound).
* Caps : Polypropylene, Cover : Polycarbonate, PP Glass filled.
* Insert : Brass, M.S. (Zinc Passivated), Alluminium.
* All Products are CE certified.
